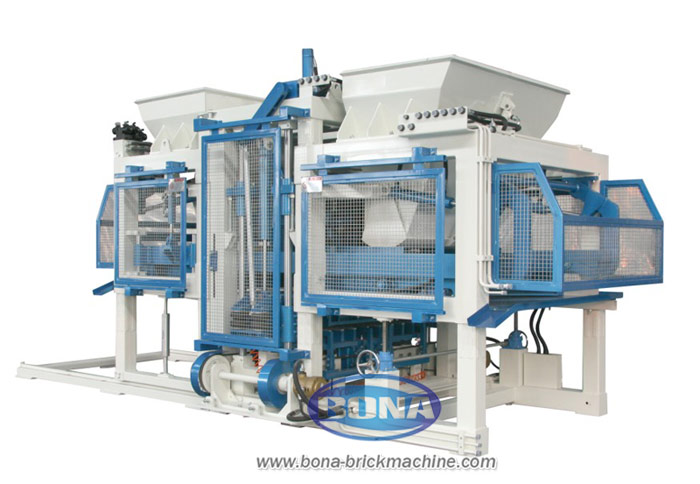

QT12-15 Concrete Block Making Machine

  • Dimension: 9350*2520*2950mm
  • Vibration frequency: 2800-4500r /min
  • Rated pressure: 21MPa
  • Molding Cycle: 15-25(s)
  • Overall Power: 46kw
  • Pallet Size: 1300*900mm

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Follow Us :
  • automatic brick making machine
■ Specifications

Concrete brick making machine  full automatic







1.Introduction about concrete brick making machine full automatic




1> Equipped with color face material feeding device,it could make various color face bricks,through-body Environmental protection bricks,road curb rocks,hydraulic blocks and sod bricks and so on.



2> Multifunction in one machine.Changing molds can produce various kinds of specification porous bricks,standard bricks,hollow bricks,with a double material-feeding machine can produce all kinds of the colored road bricks,grassland bricks,and slope protection bricks etc.



3> QT12-15 block brick making machines full automatic : It adopts the PLC operating system,and the action procedures lock with each other,which can guarantees the machine safely and dependablely in the operation procedure.



4> The unique forcing material-feeding system and a specialized iron bar adjust to changing of different mould cases can have a second material-feeding effect perfectly.

Best-selling products:fly ash brick machine,cement brick making machine,red brick making machine,adobe brick making machine.




■ Technical Data

Capacity of concrete brick making machine full automatic



Item Specification size Quantity per mold Cycle mouding Per hour Per day
Hollow brick 400*200*200 12pcs 20-25s 1728-2160pcs 17280-2100pcs/day
Porous brick 240*115*90 30pcs 15-20s 5400-7200pcs 54000-72000pcs/day
Standard brick 240*115*53 60pcs 15-17s 12700-14400pcs 127000-144000pcs/day
■ Video
■ Application

Main technical parameters of concrete brick making machine full automatic



Main Technical Specifications
Dimension 9350*2520*2950mm
Rated pressure 21MPa
Main vibration platform
Vibration frequency 2800-4500r /min
Pallet Size 1300*900mm
Molding Cycle 15-25(s)
Overall Power 46kw
Raw Materials crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc.
